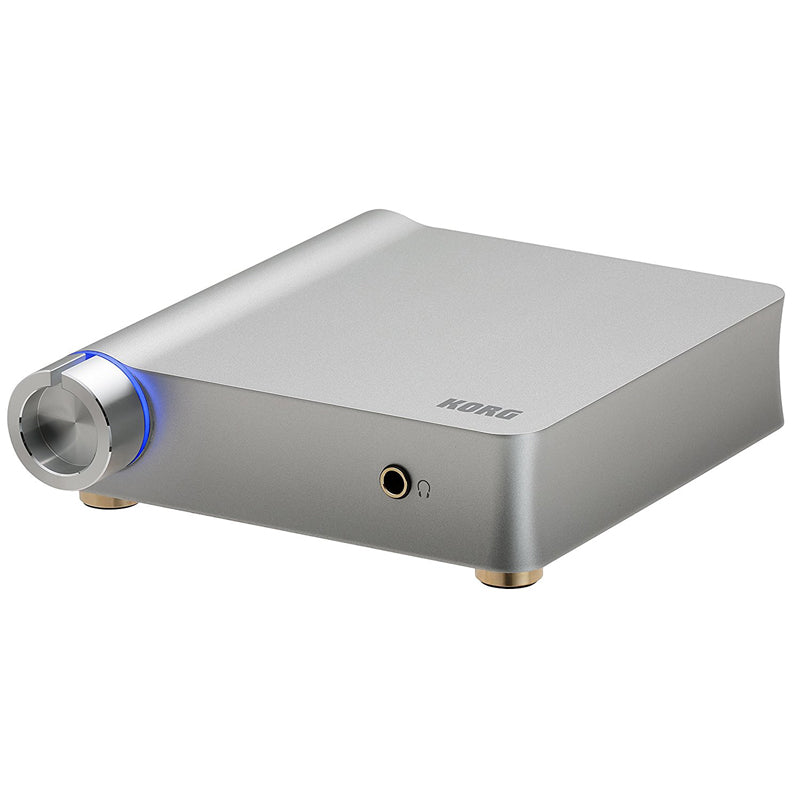

Korg DS-DAC-10R 1-Bit USB DAC/ADC Audio Converter:
High-Resolution is the latest audio frontier. USB DAC hardware is now plentiful, and various high-resolution formats are available. The only thing lacking has been an ample supply of music or source material available in a high-resolution format.
KORG was among the first to embrace the potential of high-resolution DSD audio with its MR Series of rack-style studio recorders, portable solutions, and hand-held devices. In addition, their complementary AudioGate software works with all the latest formats and has quickly become the standard for high-resolution audio playback.
Now KORG is proud to add the DS-DAC-10R to their list of DSD hardware and software products that were created to satisfy audio lovers everywhere. This revolutionary USB DAC (Digital-to-Audio Converter) recording system also offers professional-grade Analog-to-Digital conversion and is even equipped with phono inputsideal for archiving your vinyl records.
If you cant find the high-resolution audio materials that youre craving to hear, record them yourself with the DS-DAC-10R; the 1-bit USB-DAC/ADC from KORG
Details:
Audio Interface:
- Number of Channels:2
- Input Format (USB):DSD: 2.8224MHz/5.6448MHz, 1bitPCM: 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz, 16bit/24bit
- Host Interface:USB2.0 (High Speed)
- Audio DriverASIO 2.1, WDM, Core Audio
General:
- Indicator:Power, Sample Rate, Rec Status
- Power:USB bus power (5V, Max: 500mA)
- Power Consumption:Max 2.5W
- Dimensions (W x D x H):155mm x 185mm x 49mm/6.10" x 7.29" x 1.93" (including protrusions)
- Weight:1.2kg/ 2.65lbs.
Main Standards:
- Frequency Response Characteristics:10 Hz 20 kHz 1dB (fs=44.1 kHz/48 kHz)10 Hz 40 kHz 1dB
- S/N105dB (TYP.) 20 Hz 20 kHz, IHF-A
- THD+N:0.005% (TYP.) 20 Hz 20 kHz

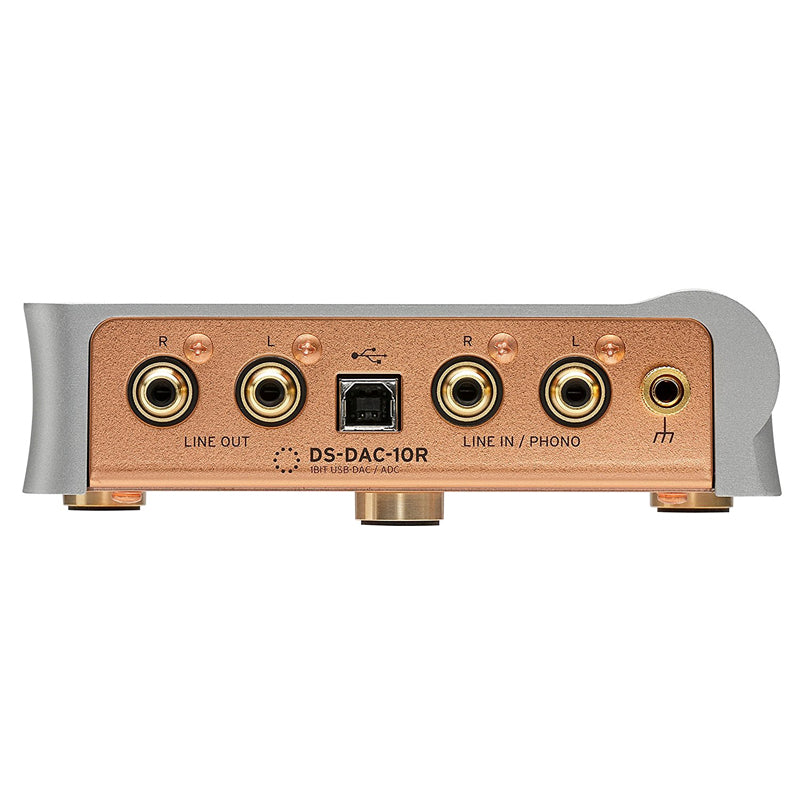

LINE OUT L/R:
- Connector:RCA pin Jack
- Load Impedance:More than 10kO
- Nominal Level:-6dBV
PHONES:
- Connector:f6.3mm stereo phone jack
- Load Impedance:More than 16O
- Maximum Level:70mW + 70mW @32O
LINE IN/PHONO L/R:
- Connector:RCA pin Jack
- Load Impedance:LINE IN: 47KOPHONO: 50KO
- Nominal Level:LINE IN: -6dBV
