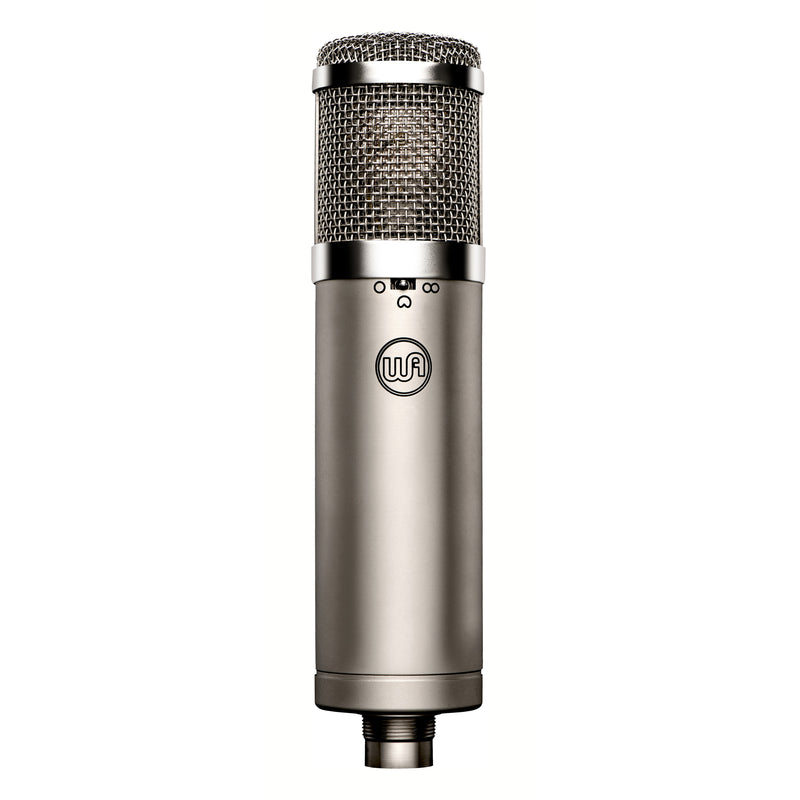

Warm Audio WA-47jr FET Studio Condenser Microphone:
The WA-47jr is an FET transformerless version of the highly renowned classic 47 microphone that has been used on countless hit records for the last 50+ years. The WA-47jr is fully discrete, has 3 polar patterns and is designed for pro studio, home studio, live, and broadcast applications. The WA-47jr sounds great on vocals, acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass/woodwind instruments, and an array of other sources.
Specifications:
- FET Transformerless '47 Style Condenser Microphone.
- Custom True '47 Capsule Reproduction (K47 Style)
Model# WA-47-B-80v. - Capsule Makeup: Gold Sputtered, Dual Large Diaphragm, Single Backplate, 6 Microns NOS Mylar (PET Film).
- Polar Patterns: Cardioid, Figure-Of-Eight, And Omnidirectional.
- Pad: -10db
- High-Pass Filter: 70Hz
- Self-Noise: 9dBA
- Dynamic Range: 138dBA

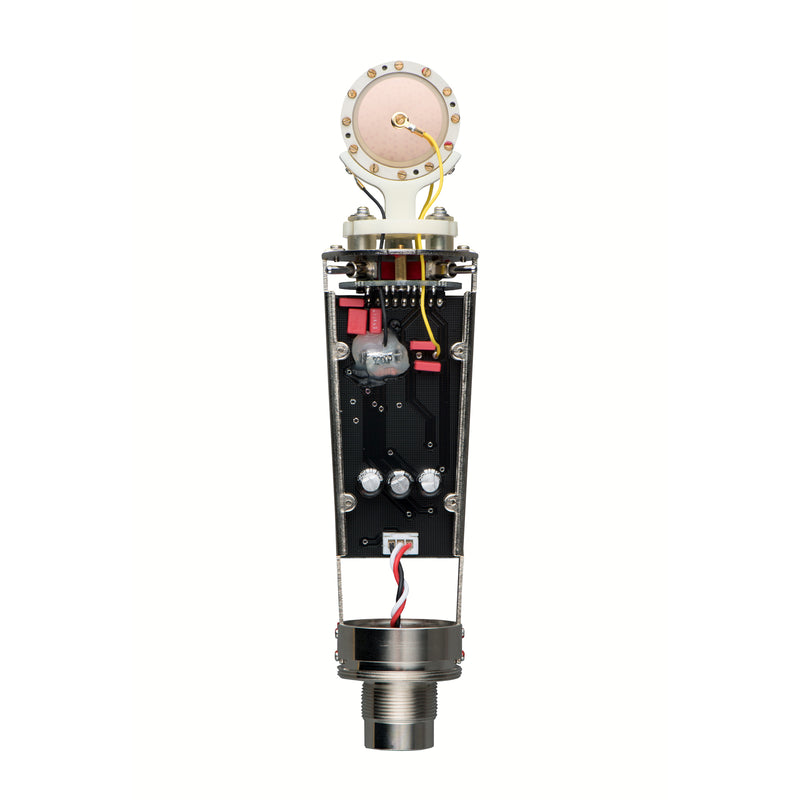

- Fully Discrete Signal Path, Toshiba FETs, Wima Film Capacitors, Panasonic Electrolytic Capacitors
- Maximum SPL: 147/157dB (@1kHz 1kOhms 0.5% THD, 0/-10dB)
- Frequency Range: 20 Hz~20 KHz
- Sensitivity: 10mV/Pa Or -40dB
- Output Impedance: 100 Ohms
- Rated Load Impedance: 1kOhms
- Equivalent Noise: 10dBA (IEC651)
- Total Weight: 1.1 Lbs
- Mic Diameter: 52mm
- Mic Length: 210mm

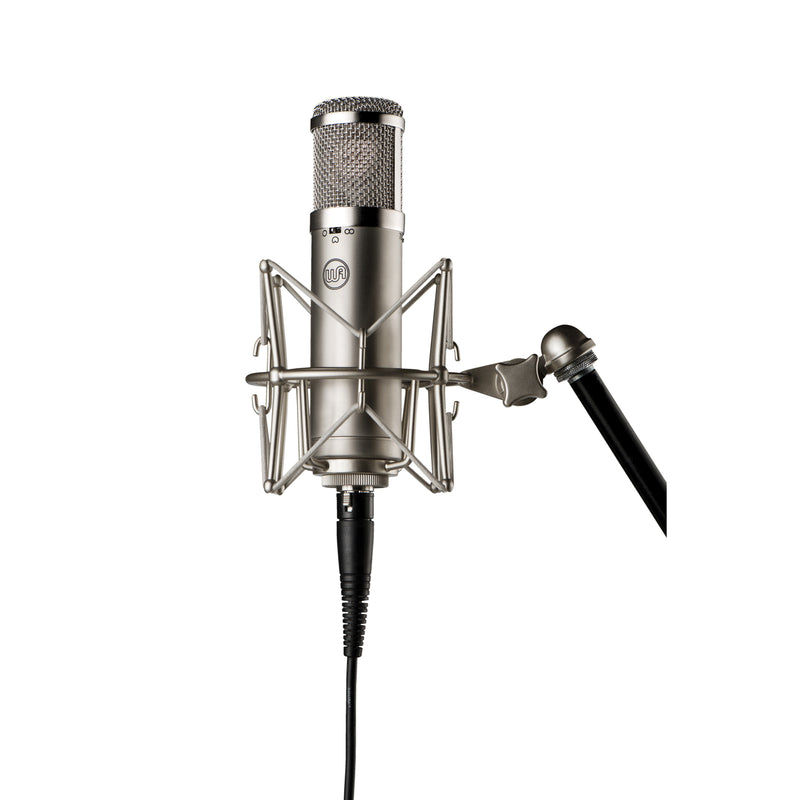

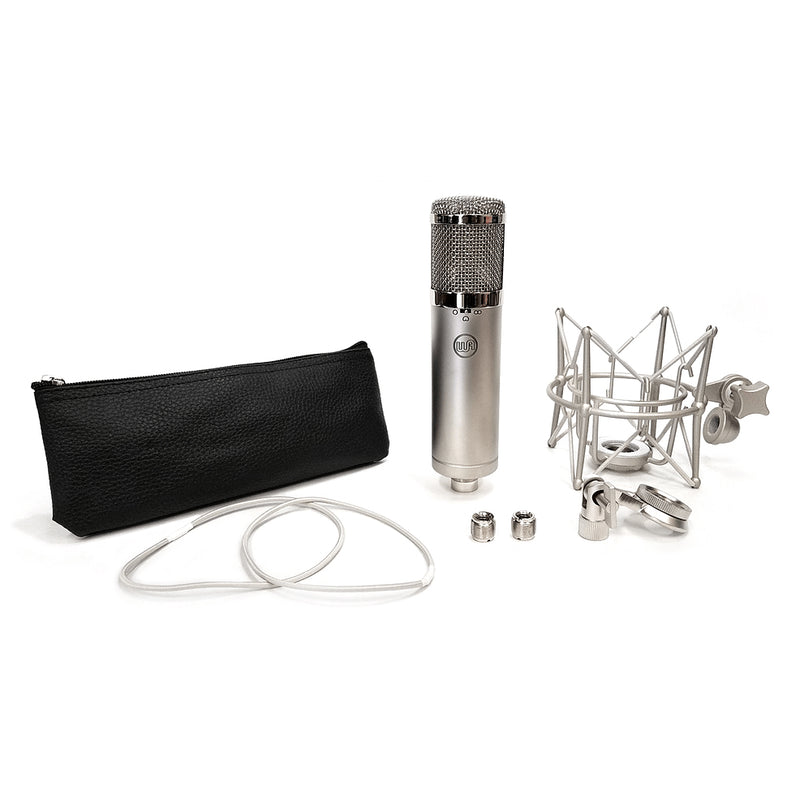

- Includes: Shockmount, Hard Mount, Zipper Storage Pouch
